SKID STEER TYRE TECHNICAL SPECIFICATION

Size	Pattern	Rim Width	Unloaded Inflated		Ply	Type	Load Capacity ( Kg )		IP ( bar )
			Dimensions		Rating
			+/-2%				8 km/h	16 km/h
			OD ( mm )	CSW ( mm )

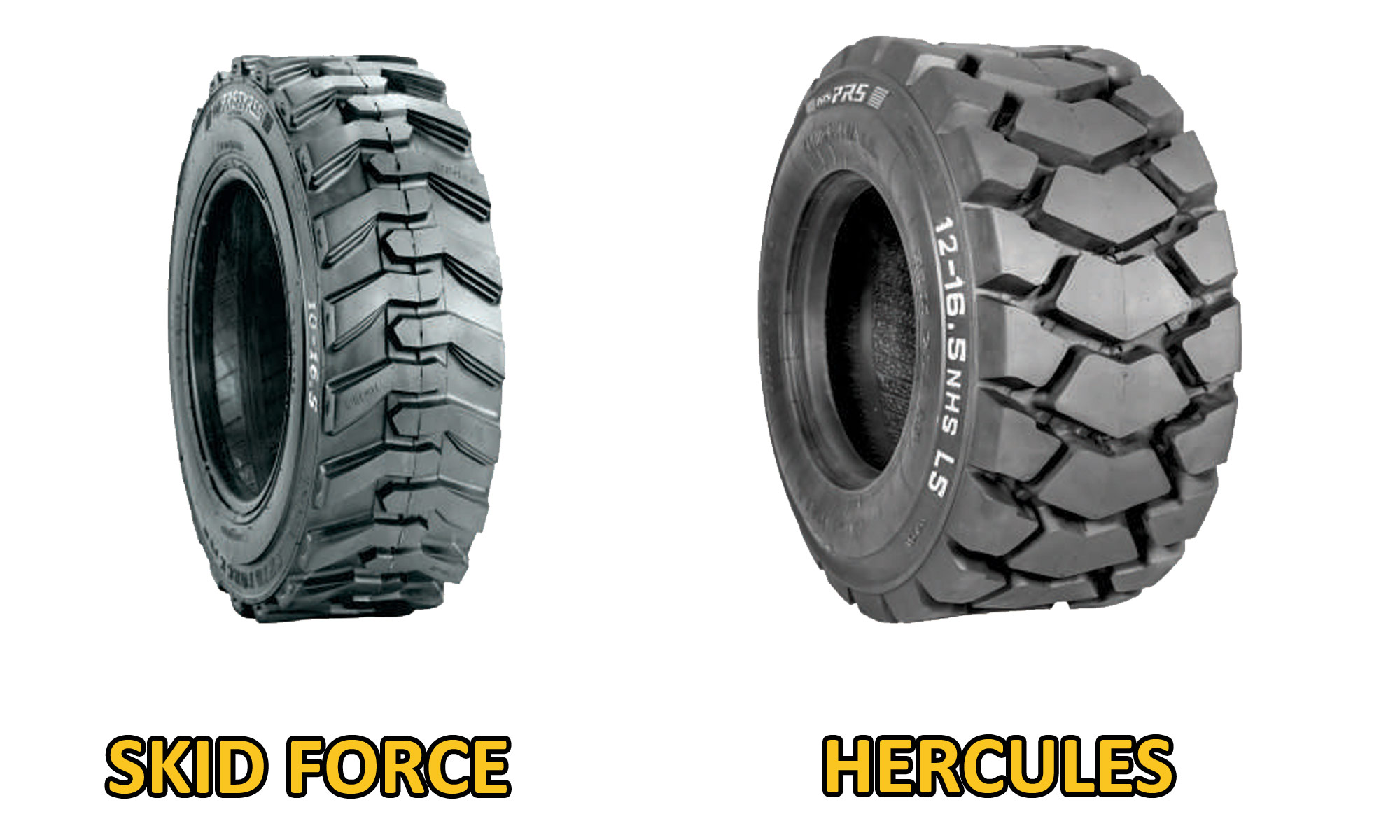

10-16.5	Skid Force	8.25	776	264	8	TL	1880	1485	4.1
		8.25	776	264	10	TL	2135	1685	5.1
		8.25	776	264	12	TL	2380	1875	6.2
12-16.5		9.75	840	320	10	TL	2540	2010	4.5
		9.75	840	320	12	TL	2890	2285	5.6
		9.75	840	320	14	TL	3065	2420	6.2
10-16.5	Hercules	8.25	776	264	12	TL	2380	1875	6.2
12-16.5		9.75	840	320	14	TL	3065	2420	6.2
