EXCAVATOR - TYRE TECHNICAL SPECIFICATION
| SIZE | PR | Tread Pattern |
Type | Rim (Permitted) | Tube Flap | New | Max.in Service | Loaded static radius (mm) |
Rolling Circumference (mm) |
Tread width (mm) |
Minimal dual spacing (mm) |
Service Description LI/SS |
Tyre load capacity (kg) at speed (km/h) | Tyre pressure (bar) | |||||||
| Overall Diameter (mm) | Section Width (mm) | Overall Diameter (mm) |
Overall Width (mm) |
Static | 10 | 20 | 30 | 40 | 50 | ||||||||||||

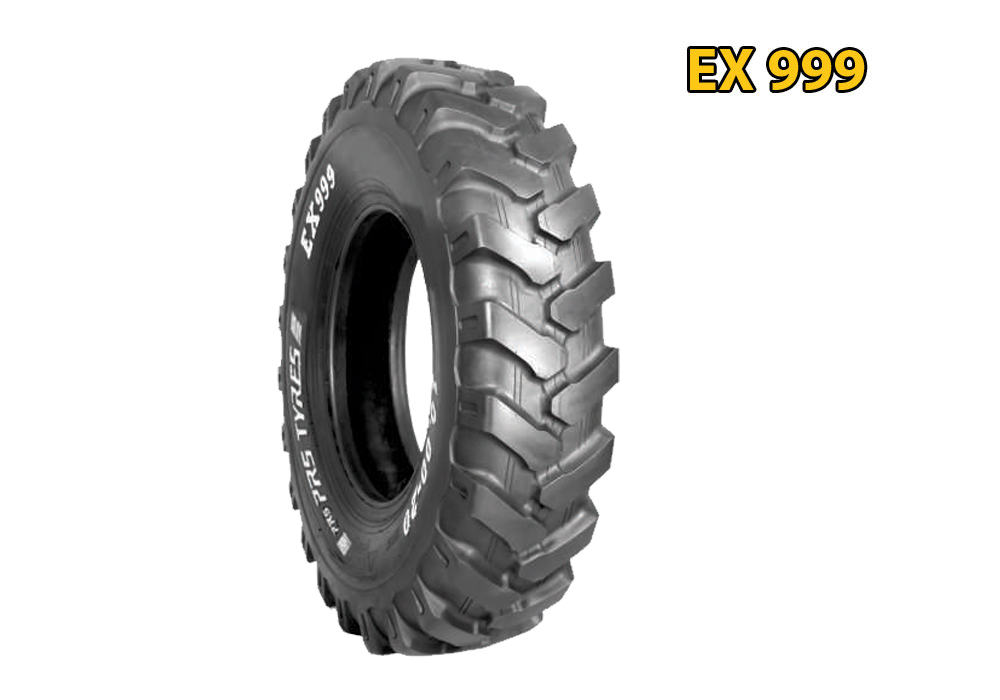

| 10.00-20 | 14 | EX 999 | TT | 7.5 - 20 (7.0;8.0-20) |
10.00-20 20/2eHD |
1050 | 275 | 1077 | 297 | 498 | 3180 | 264 | 316 | 146B | 6380 6575 |
4595 4735 |
3830 3945 |
3117 3210 |
2946 3033 |
2860 2945 |
6.00 6.50 |
| 16 | EX 999 | TT | 7.5 - 20 (7.0;8.0-20) |
10.00-20 20/2eHD |
1050 | 275 | 1077 | 297 | 498 | 3180 | 264 | 316 | 146B | 6790 7000 |
4850 7000 |
3880 4000 |
3172 3270 |
2997 3090 |
2910 3000 |
7.25 7.50 |
|
